Product Detail
Super High Pressure Mercury Capillary LampsPC5000MF/CHM HT-3000,5000,8000
Super High Pressure Mercury Capillary LampsPC5000MF/CHM HT-3000,5000,8000
Lead Time : 10-15 days
Packing : Wood case or Carton
Brand : JH-UV
Life Time : 8000 times
Detail


Wecome to Juehui Light Source!

Kindly let me introduce the Capillary Lamp for you:


Basics: what is a Capillary Lamp?

Mercury capillary lamps provide an intense source of radiant energy from the ultraviolet through the near infrared range. These lamps feature no warming-up period for starting or restarting, and reach almost full brightness within a few seconds. They are available in a variety of arc length, radiant power and mounting methods.

Please contact us for pricing and availability.

Super High Pressure Capillary Mercury Lamp is a lamp using mercury's unique spectrum. This product is used for PCB, color cathode ray tube(CRT) and other exposure process. In particular, the width and shape of a fluorescent film and graphite film of a color CRT and the pattern of PCB are determined by the arc length, exposure time, and the luminance intensity of a lamp.


Applications:

■ For PCB exposure, and other exposure process

■ Lead Frame & Semiconductor Exposure

■ UV Polymerization



OEM Lamp

C-Sun

Colight

Dynachem

Fuji

Gyrex

Hi-Tek

Matrex

Mimir

OAC/ORC

Yumax


Specifications:


Our  CodeRated PowerRate   CurrentRate VoltageArc LengthAverage BrightnessTotal LuminousBurning PositionL1 (mm)L2 (mm)Fig.No.
(w)(A)(V)(mm)(cd/cm2)Flux(lm)



115001.351150453500097500Horizontal1381001
220001.513507035000130000Horizontal1781401
330001.717708035000195000Horizontal1831451
435001.7212012035000249000Horizontal2391881
540001.7236010035000260000Horizontal2031651
650001.7295013535000325000Horizontal2592081
750001.7295013535000325000Horizontal2341961
820001.513508035000130000Horizontal1681302
930001.717709035000195000Horizontal2682222
1035001.7212012035000249000Horizontal1782322
1140001.7236012535000260000Horizontal2882422
1250001.8320014035000325000Horizontal2902442
1330001.717708035000195000Horizontal2531043
1450001.7526009535000325000Horizontal2531133
1580001.7384014035000422500Horizontal2901603

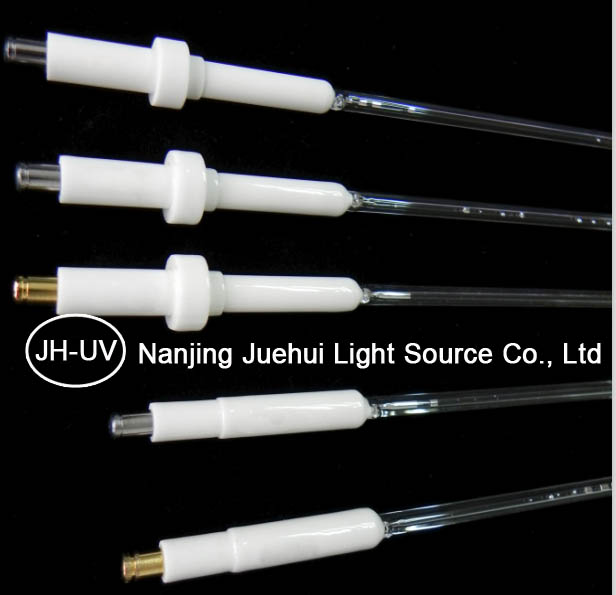

Photo show:




Thanks for viewing , if any questions, please feel free to contact us! we are always at your service!
